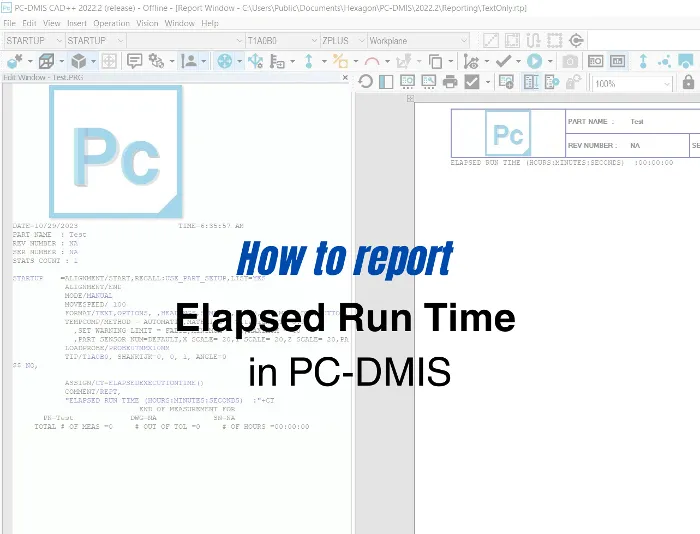

How to Report “Elapsed Run Time” in PC-DMIS

How to Report “Elapsed Run Time” in PC-DMIS

Introduction

PC-DMIS is a software package used for measuring and inspecting manufactured parts. One of the key features of PC-DMIS is the ability to report “Elapsed Run Time” for a measurement routine. This feature is useful for tracking the amount of time it takes to complete a measurement routine, which can be helpful for identifying bottlenecks in the manufacturing process and improving efficiency.

Why Report Elapsed Run Time?

Reporting “Elapsed Run Time” in PC-DMIS can provide valuable insights into the manufacturing process. By tracking the amount of time it takes to complete a measurement routine, you can identify areas where the process can be improved. For example, if a particular measurement routine is taking longer than expected, you can investigate why this is happening and take steps to optimize the process.

Reporting Elapsed Run Time

To report “Elapsed Run Time” in PC-DMIS, follow these steps:

Step 1: Open the Measurement Routine

Open the measurement routine that you want to report “Elapsed Run Time” for. This is done in “Command Mode.” It should be placed after dimensioning and before printing and reporting.

Step 2: Add a comment for clarity

Add a comment to the measurement routine. To do this, follow these steps:

1. Click on the “Insert” tab in the PC-DMIS main window.

2. Click on the “Report Command” button.

3. Click on the “Comment” Button.

4. Select “Document.”.

5. In the comment text box, hit the space bar a few times.

6. Type “--------------------------- Elapsed Run Time -----------------------”

7. Click OK.

Step 3: Insert the “Elapsed Execution Time” assignment.

Insert the “Elapsed Execution Time” assignment in the measurement routine. To do this, follow these steps:

1. Click on the “Insert” tab in the PC-DMIS main window.

2. Click on the “Assignment” button.

3. In the “Assign To” text box, type “CT” or any variable that is not in the measurement already.

4. In the “Assign From” text box, remove the 0.

5. Click on the “Assign From” button.

6. In the dropdown menu, click on “Functions and Operators.”

7. Click on the “ID:” button and select “ELAPSEDEXECUTIONTIME().”

8. Click on the “Add ELAPSEDEXECUTIONTIME()” button and make sure you remove the “0” if there is one.

9. Click OK. The code should look like the image below.

Step 4: Add the “Elapsed Run Time” to the report.

Add “Elapsed Run Time” to the measurement routine. To do this, follow these steps:

1. Click on the “Insert” tab in the PC-DMIS main window.

2. Click on the “Report Command” button.

3. Click on the “Comment” Button.

4. Select “Report”.

5. In the comment text box, Type “ELAPSED RUN TIME (HOURS:MINUTES:SECONDS)  :”+CT.

6. Click OK. The code should look like the image below.

7. Click Enter twice. This is important as it takes you out of the operation.

Step 5: Test the code.

Test the code in the report. To do this, follow these steps:

1. Click on the “Report Window” tab in the PC-DMIS Toolbar.

2. Click on the “View Report WIndow” button.

3. The Report should look like the image below.

4. Operation complete.

Conclusion

Reporting “Elapsed Run Time” in PC-DMIS is a simple process that can provide valuable insights into your inspection process. By tracking how long it takes to complete a measurement routine, you can identify areas where improvements can be made and optimize your manufacturing process for greater efficiency.
